WRENCHES
Ratchet Wrenches
Ratchet Wrenches are used on automobiles to work on radiators, water pumps and air conditioning systems to quickly remove/install fasteners. Tools can handle bolts from ” to ”. Also useful in assembly applications.
Model RPM Bolt Cap.
(in.)
Square Drive
(in.)
Stall Torque
(ft.lbs.)
Ultimate Torque by Hand
(ft.lbs.)
Length
(in.)
Weight
(lbs.)
Air Inlet NPT
(in.)

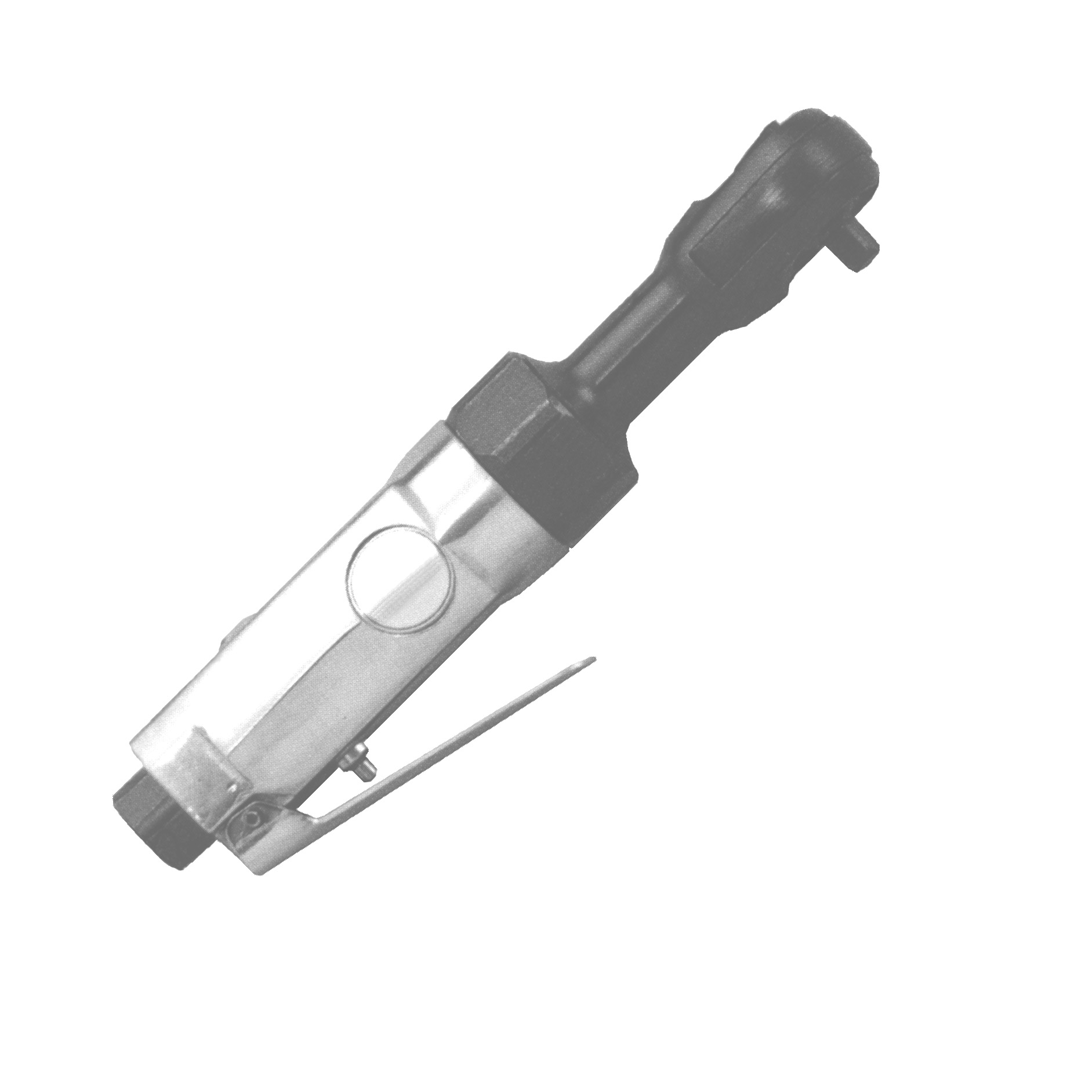

RW-270-250
270 1/4 1/4 10 25 7 1/4 1.25 1/4

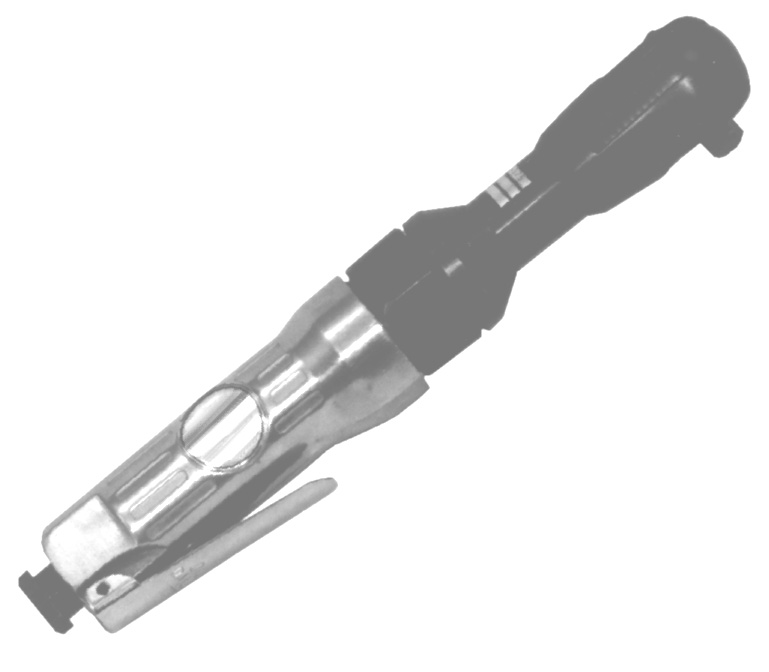

RW-175-375
175 3/8 3/8 20 125 10 2.65 1/4

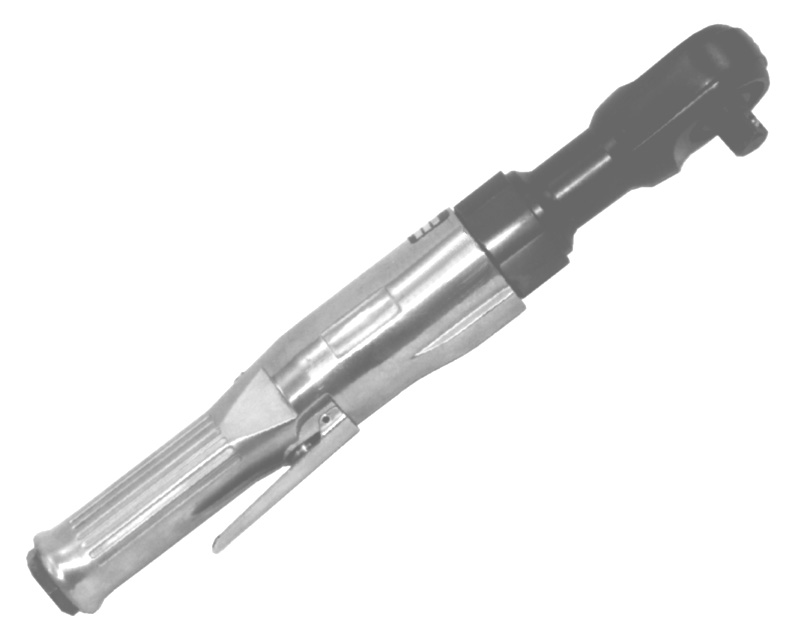

RW-180-500
180 1/2 1/2 30 175 14 1/8 4.38 1/4
Impact Wrenches
Used extensively for tire work. Chose extended anvil models to reach lug nuts in truck wheel wells. 3/8", 3/4" and 1" also available.
Model Bolt Cap.
(in.)
Square Drive
(in.)
Side to Center
(in.)
Ultimate Torque
(ft.lbs.)
Length
(in.)
Weight
(lbs.)
Air Inlet NPT
(in.)
Retainer

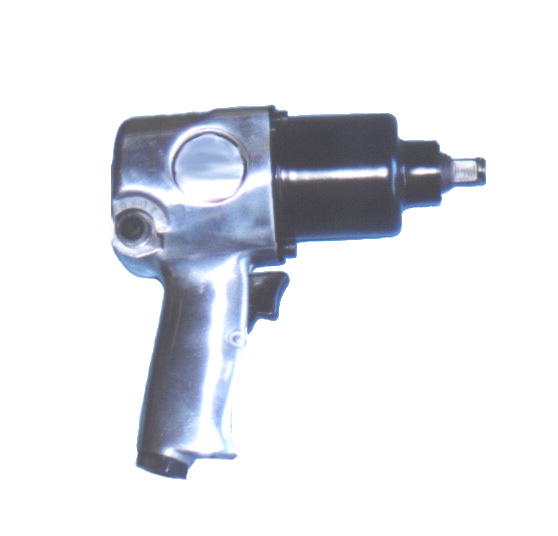

IP-500S-DH
5/8 1/2 1 1/8 400 6 3/4 6.00 1/4 RING
