GRINDERS
Die Grinders
Used for deburring, polishing, grinding and sanding. Use mounted stones or carbide burrs to best suit your application. Most models include built-in speed regulators to match the speed to the job. Many models feature lock-off safety throttle levers.
Model Exhaust
(Front or Rear)
RPM Collet (Chuck)
Size (in.)
Outside Diameter
(in.)
HP Length
(in.)
Weight
(lbs.)
Air Inlet NPT
(in.)

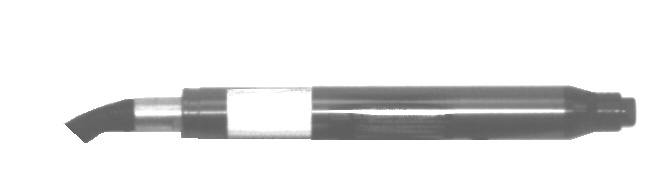

0401
REAR 60,000 1/8 5/8 .1 5 3/4 .25 1/4

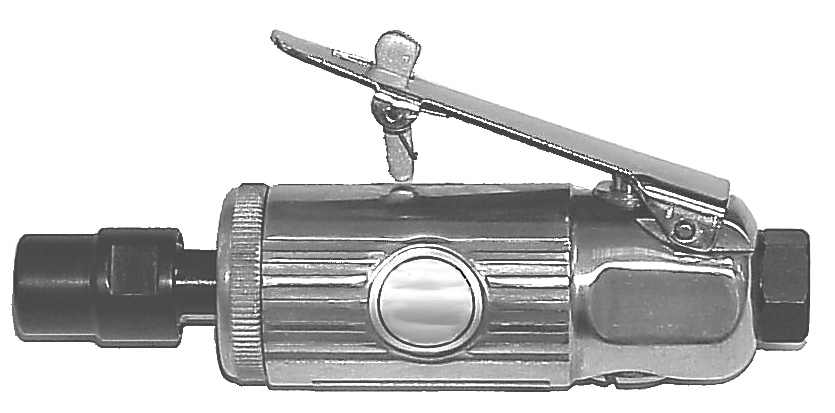

1000
FRONT 30,000 1/4 1 5/16 .25 5 1/4 .80 1/4

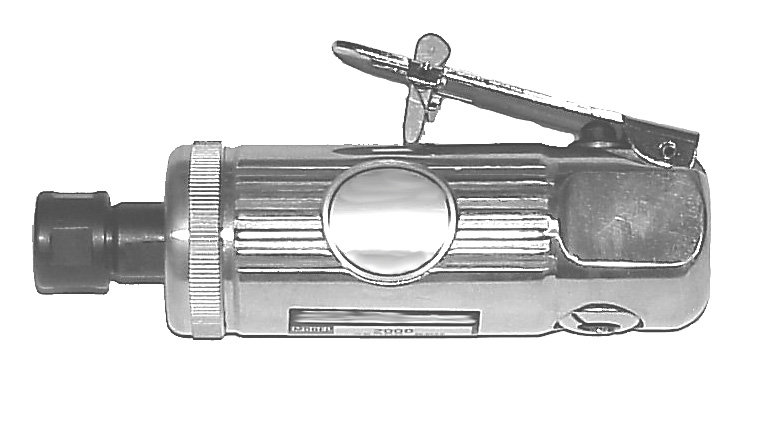

2000
FRONT 25,000 1/4 1 5/8 .50 5 1/4 1.30 1/4

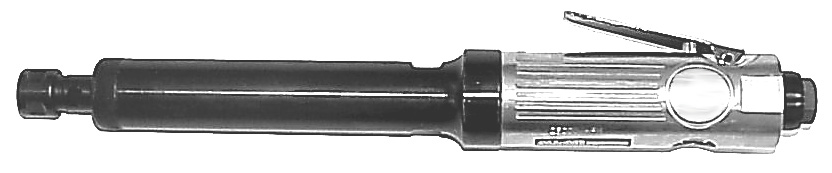

2080-6
REAR 25,000 1/4 1 5/8 .50 13 1/8 2.90 1/4

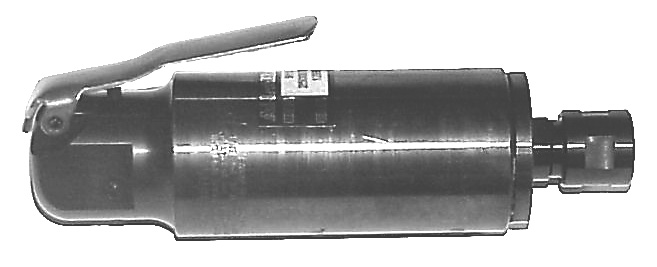

9113
FRONT 25,000 1/4 1 3/4 1.00 6 3/8 2.40 1/4

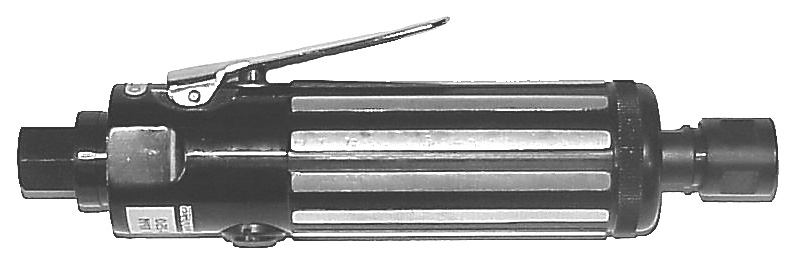

DG-90-250
REAR 25,000 1/4 1 5/8 .90 7 7/8 1.70 1/4
Angle Die Grinders
Used for deburring, polishing, grinding and sanding. Use mounted stones or carbide burrs to best suit your application. Most models include built-in speed regulators to match the speed to the job. Many models feature lock-off safety throttle levers.
Model Exhaust
(Front or Rear)
RPM Collet (Chuck)
Size (in.)
Spindle Offset
(in.)
HP Head Height
(in.)
Length
(in.)
Weight
(lbs.)
Air Inlet NPT
(in.)

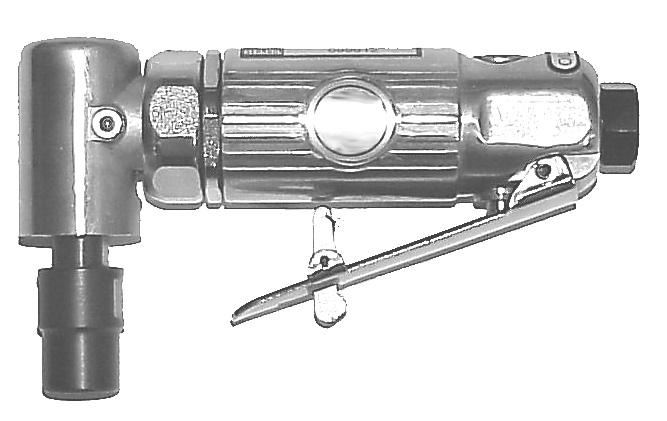

1201
FRONT 20,000 1/4 17/32 .25 3 5 1/4 1.00 1/4
Angle Grinders
Used in factories, shipyards, foundries and power facilities for deburring and grinding. Mostly used with type 27 depressed center grinding wheels. Features include hardened spiral bevel gears and removable side handles.
Model RPM Depressed Center Disc Cap.
(in.)
Wheel Arbor Hole
(in.)
Spindle Size
(in.)
HP Length
(in.)
Weight
(lbs.)
Air Inlet NPT
(in.)

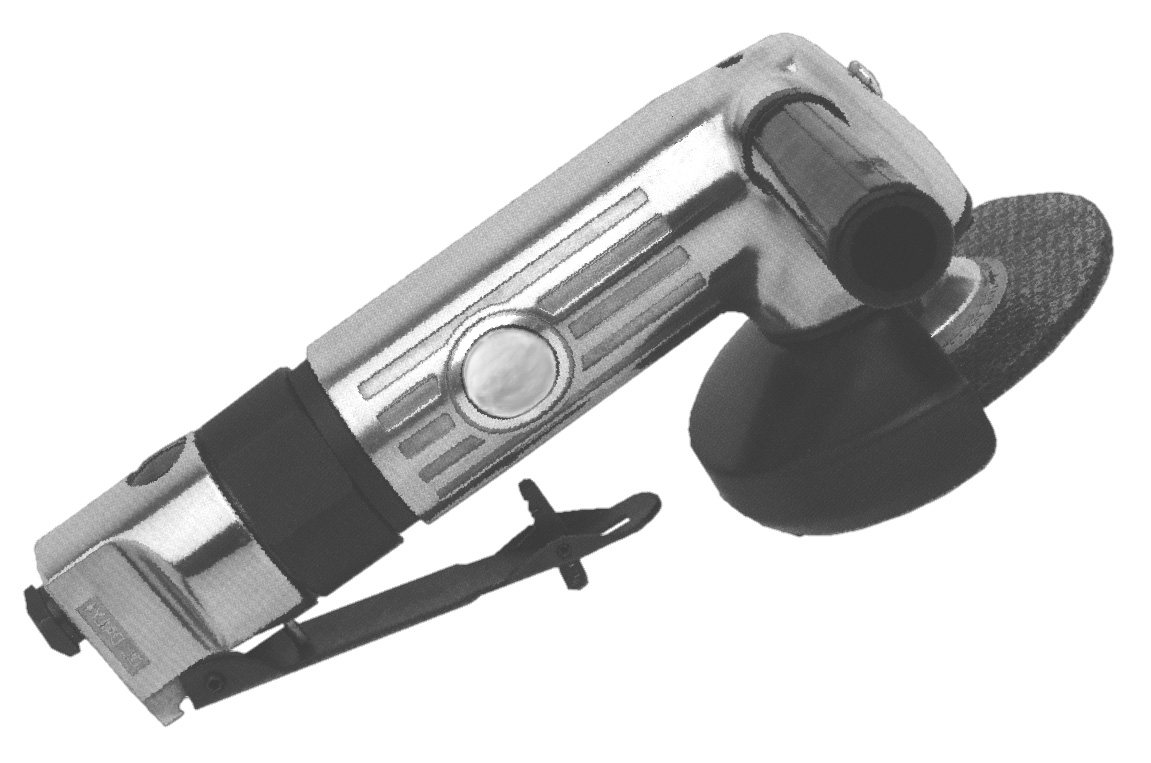

9110-4
12,000 4 5/8 3/8-24 .9 9 3.75 1/4
9110-4.5
12,000 4-1/2 7/8 5/8-11 .9 9 3.75 1/4

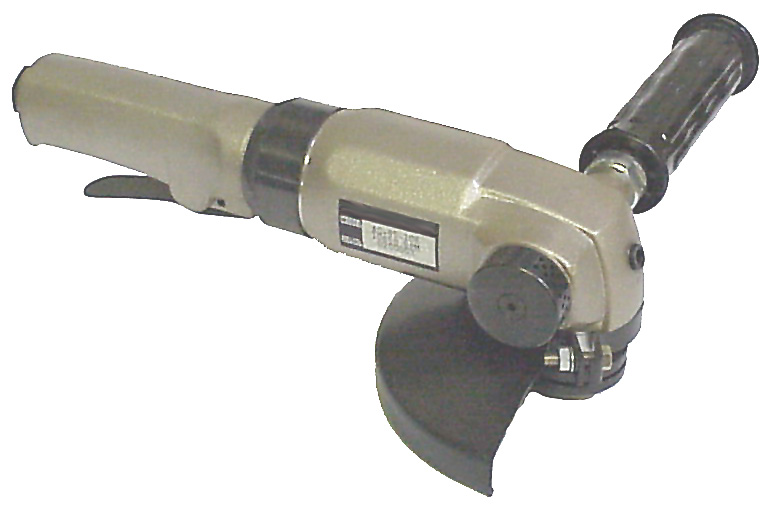

AG-95-108
10,850 5 7/8 5/8-11 .95 10 1/4 4.50 1/4
AG-120-75
7,500 7 7/8 5/8-11 1.20 12 3/4 7.75 3/8
Vertical Grinders
Used for heavy duty grinding and sanding in shipyards, foundries, construction and refineries. Available in 7” & 9” sizes using type 27 depressed center grinding wheels.
Model RPM Depressed Center Disc Cap.
(in.)
Spindle Size
(in.)
HP Height
(in.)
Weight
(lbs.)
Air Inlet NPT
(in.)

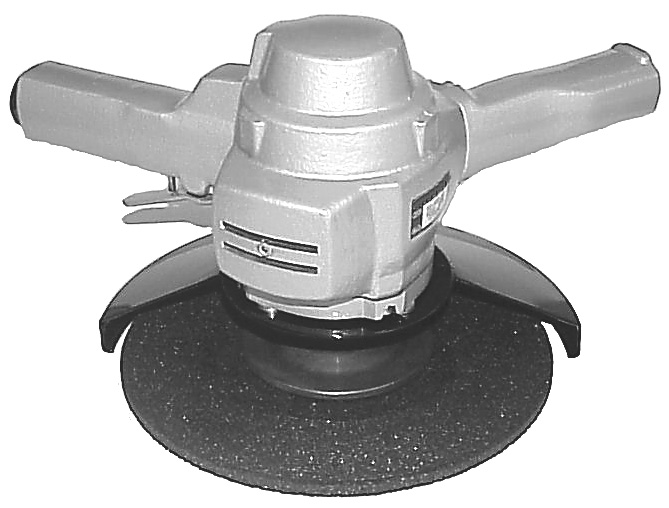

VG-400-60
6,000 9 5/8-11 4.0 7 1/2 10.60 1/2
