Air Scribers, High speed Hacksaws, Rivet Hammers, Tile Scrapers

OTHER TOOLS

Air Scribers Carbide stylus for easy marking on hardened steel or glass. Used extensively in the fossil preparation field. Weighs just ¼ pound!
Model	Bore & Stroke (in.)	Blows per Minute	Length (in.)	Weight (lbs.)	Air Inlet NPT (in.)

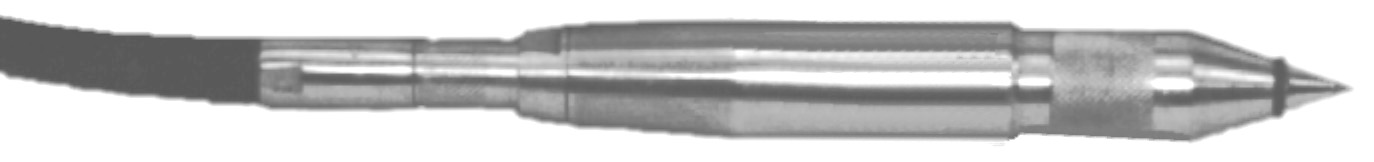

8315B	N/A	36,000	6 3/8	0.25	1/4

Cutters & Crimpers Many other sizes available. Wire Cutting capacity up to .275” diameter copper wire. Many different cutting and crimping heads available. Call us with your application.
Model	Length (in.)	Diameter (in.)	Weight (lbs.)	Air Consumption (cu.in. / Stroke)	Air Pressure (psi)	Power (lbs.) (Midway on blade)	Air Inlet NPT (in.)

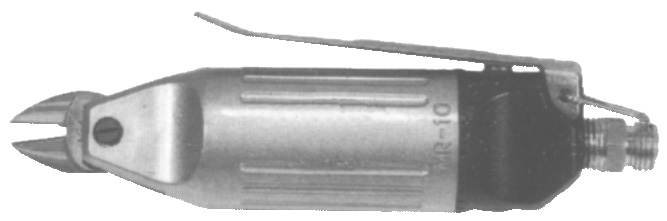

MR10	4-7/8	1-13/32	.5	7.0	60-90	132	1/4

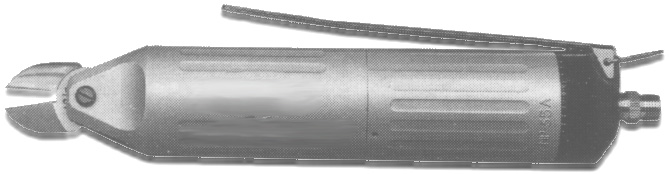

MP35A	10-1/2	2-13/64	2	58.3	70-90	992	1/4

Hacksaws High speed saw can cut detailed shapes in fiberglass, plastic, sheet metal and aluminum. Used in auto-body and fabrication shops.
Model	Steel Sheet Cap. (guage)	Stroke (in.)	Strokes per Minute	Length (in.) (w/o hose)	Weight (lbs.)	Air Inlet NPT (in.)

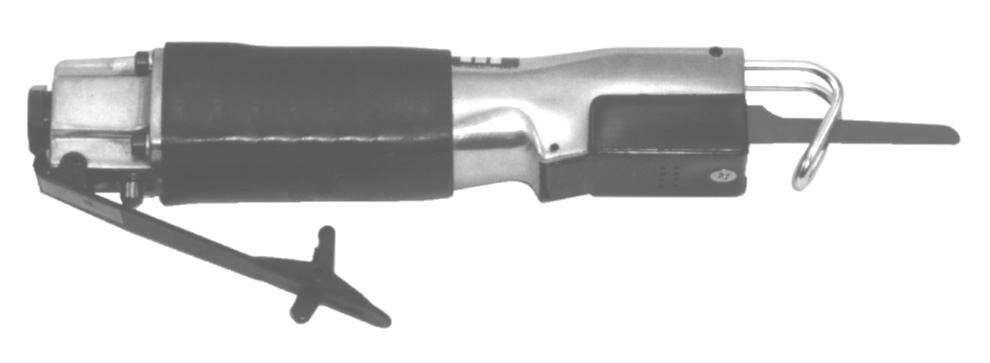

HS-25	12	1/4	10,000	9 1/8	1.38	1/4

Needle Scalers Pistol grip and inline models for use in shipyards, fabrication, welding and construction. Used to chip paint and prepare surfaces, peed weld joints and remove concrete from equipment. Many other models available.
Model	Number of Needles (dia. & length in.)	Bore & Stroke (in.)	Blows per Minute	Length (in.)	Weight (lbs.)	Air Inlet NPT (in.)

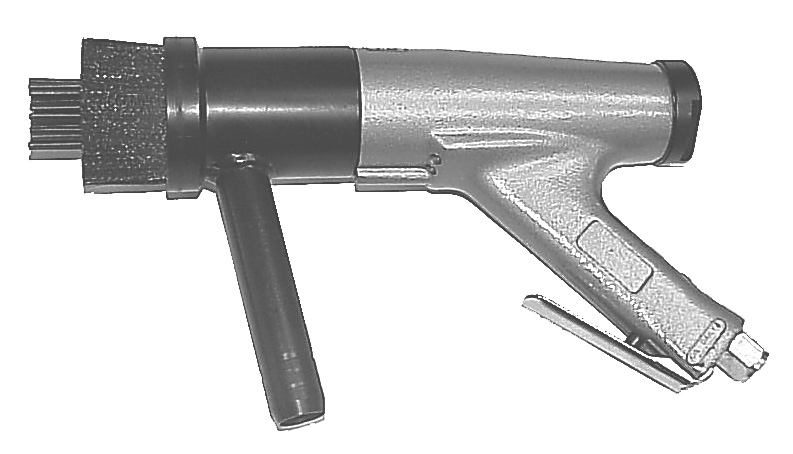

JEX-28 (shown with optional dust collection shroud)	28 (3mm x 7")	1-3/32 x 1	4,500	14 1/4	7.75	3/8

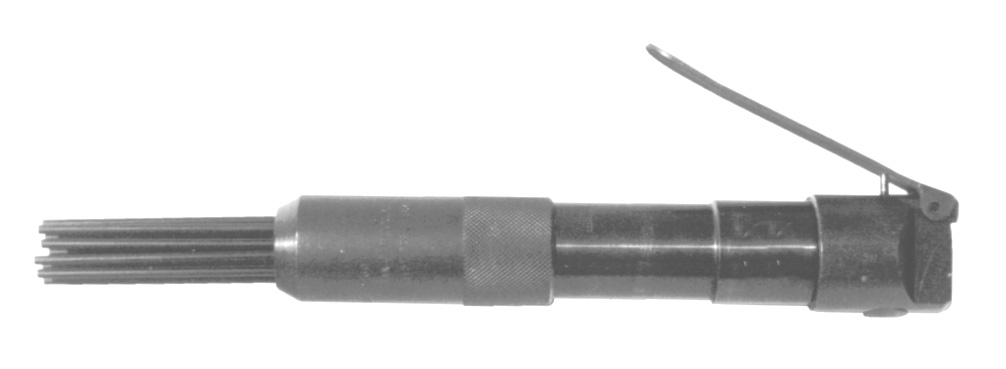

NSL-12-60	12 (3mm x 5")	11/16 x 5/8	6,000	11 1/2	2.60	1/4

Pistol Grip Drills Used for drilling, reaming, honing, etc… Industrial Jacobs drill chucks supplied with every drill. Reversible and non-reversing models in stock. Inline & 1/2" capacity also available.
Model	RPM	Chuck Size (in.)	Spindle Offset (in.)	HP	Height (in.)	Length (in.)	Weight (lbs.)	Air Inlet NPT (in.)

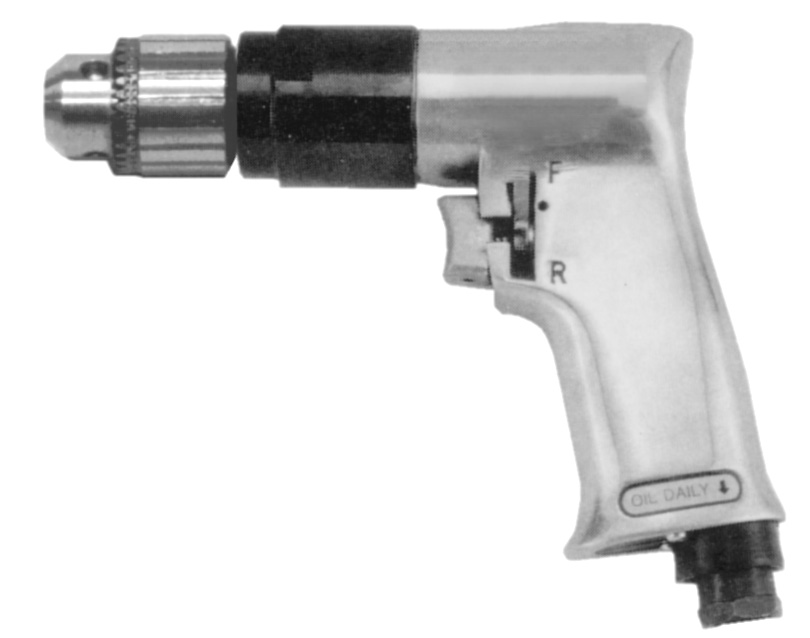

788R-25 (reversible)	2,500	3/8	7/8	.5	6	7 1/2	2.60	1/4

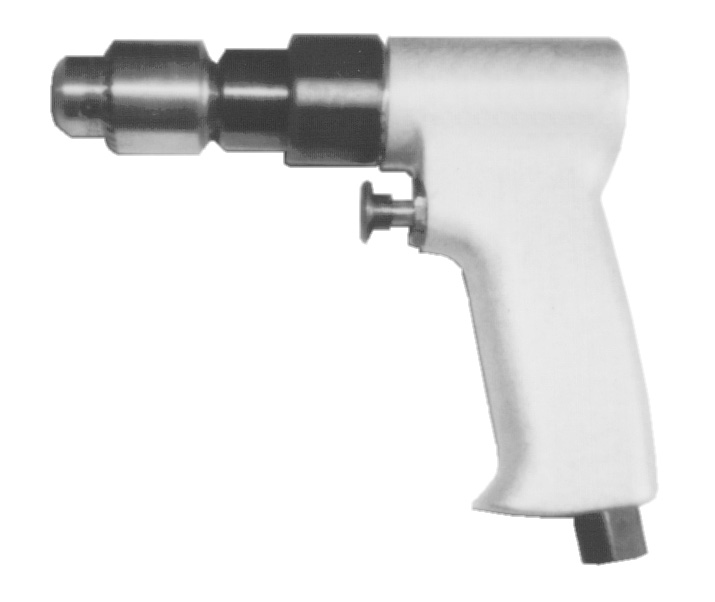

DP-30-30 (non-reversible)	3,000	1/4	11/16	.3	5 1/4	6 1/4	1.50	1/4

Rivet Hammers Used in aircraft and assembly for setting Dural and steel rivets. Also used for peening and pin driving. Precision hardened and ground spool valve. Six models available to match your application. Inline and gooseneck handles are available. (B)=Inline button handle available.
Model	Aluminum Rivet Cap. (in.)	Bore & Stroke (in.)	Blows per Minute	Shank Diameter (in.)	Length (in.)	Weight (lbs.)	Air Inlet NPT (in.)

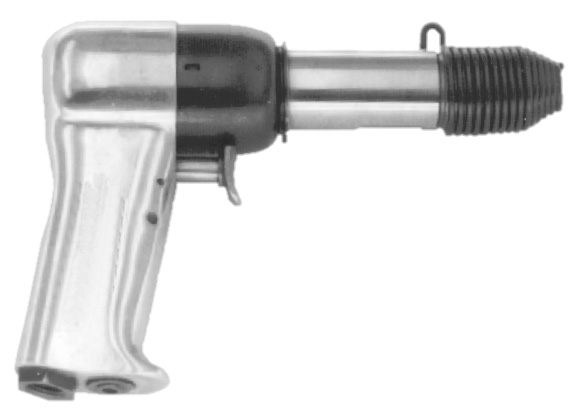

3X (B)	3/16	1/2 x 2-7/8	2,000	.401	7 5/16	2.31	1/4

Screwdrivers (auto-start & auto-shut-off) Our line of auto-start and auto-shut-off screwdrivers will speed your assembly operation. Externally adjustable clutches allow precise shut-off torque settings. Supplied with a full set of clutch springs. Many other models available.
Model	RPM	Hex Drive (in.) (SL=Slip Chuck)	Clutch Type (I=Internal) (E=External)	Torque Range (in.lbs.)	Length (in.)	Weight (lbs.)	Air Inlet NPT (in.)

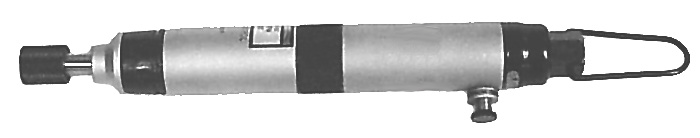

SD-30-10	1,000	1/4 SL	Adjustable (E)	5.0 - 24	10	1.60	1/4

Tile & deck Scrapers The tile and deck scraper is used extensively in manufacturing. Shipyards, railroad and construction. Uses include removal of materials in paint plants, tile stripping from concrete slabs, removal of non-skid material from ship decks, ice chipping, etc… (you name it!) available accessories include chisel widths from 1 9/16” to 4”, scraper blades to 12”, non-sparking 4” beryllium copper chisel and needle scaler attachment
Model	RPM	Hex Drive (in.) (SL=Slip Chuck)	Clutch Type (I=Internal) (E=External)	Torque Range (in.lbs.)	Length (in.)	Weight (lbs.)	Air Inlet NPT (in.)

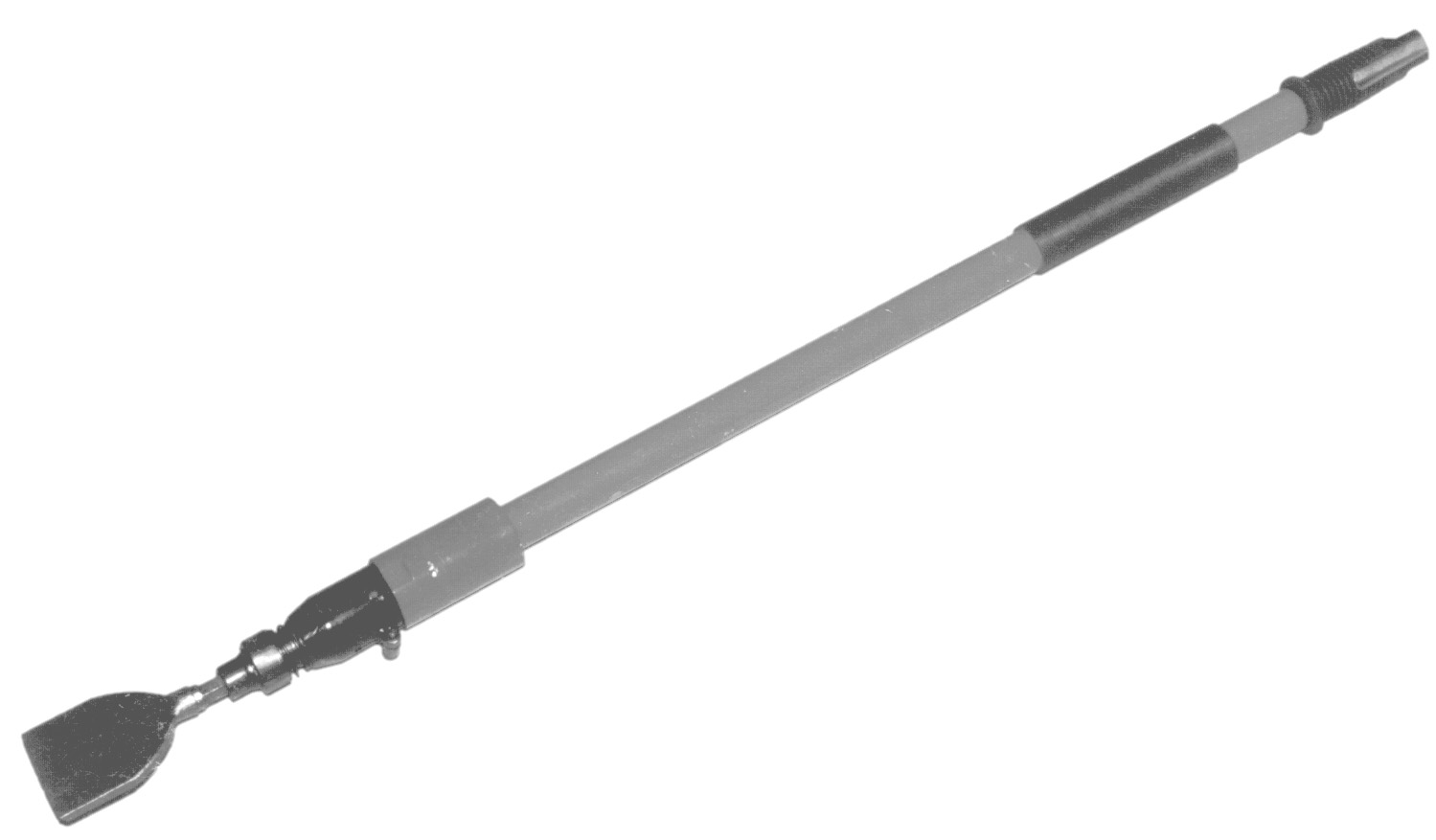

PS-3B-5	N/A	1 1/8 x 1-1/2	2,200	15mm Hex	60	15.25	1/4
